CAN FD Protocol · ECU Coding & Diagnostic Tool

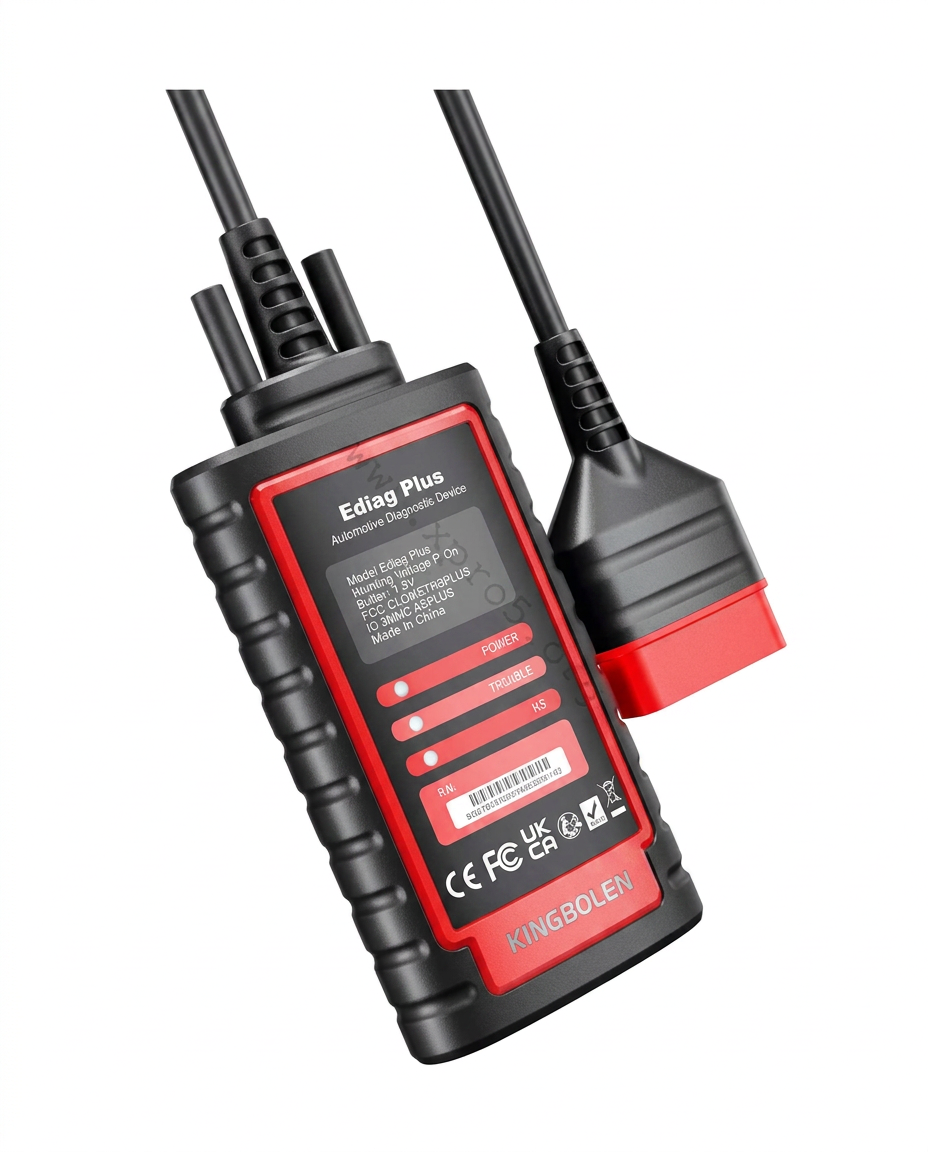

KINGBOLEN Ediag Plus

$179.99

Professional-grade OBD2 diagnostic tool with CAN FD protocol and ECU coding — full-system scanning for modern GM, Ford, BMW, Toyota and other 2020+ vehicles.

CAN-FD protocol support for 2020+ vehicles
Full-system diagnostics with bi-directional control
ECU coding, adaptation & personalization
Auto VIN detection & diagnostic report generation
Covers OBD-II, EOBD, CAN, CAN-FD, UDS, DoIP
Compatible with 90% of global car brands

Request a Quote Wholesale Inquiry

Worldwide shipping — delivered with tracking.

Overview

Engineered for technicians and enthusiasts, the Ediag Plus combines high-end functionality with affordable performance.

It's the only scanner in its class that supports the CAN-FD protocol — the standard for next-generation ECUs — making it capable of diagnosing and coding newer vehicle models that other tools cannot access.

With ECU coding, full-system scanning, and live data analysis, it transforms every garage or mobile technician setup into a professional diagnostic station.

Key Features

CAN-FD Protocol Support

Exclusive compatibility with CAN FD (Flexible Data Rate) vehicles — supports GM and other brands produced from 2020 onward. Transfers larger data frames (8–64 bytes) with enhanced CRC validation for faster communication and reduced error rates.

Full-System Diagnostics

Performs deep scanning and bidirectional communication across all available modules: engine, ABS, SRS, transmission, BCM, TPMS, HVAC, and more.

ECU Coding & Adaptation

Supports ECU coding and configuration, enabling component replacement, adaptation, and personalization of control modules.

Active Tests / Bi-Directional Control

Perform real-time actuator tests (fuel pump, fan, EGR, window, and light tests) to verify component function.

Advanced CRC Error Check Algorithm

Utilizes an optimized CRC validation system for faster communication, improved signal integrity, and higher operational stability.

Auto VIN Detection & Report Generation

Automatically identifies vehicle information and generates diagnostic reports with fault codes, freeze-frame data, and service records.

Wide Protocol & Vehicle Coverage

Supports OBD-II, EOBD, CAN, CAN-FD, ISO9141, KWP2000, J1850 PWM/VPW, UDS, and DoIP, covering 90% of global car brands.

Why It Matters

The Ediag Plus gives technicians access to the latest CAN-FD and DoIP vehicles without needing expensive dealership tools. It provides dealer-level ECU functions, improves diagnostic speed, and reduces troubleshooting time with its advanced communication algorithms — the most capable and future-proof tool in its price range.

Package & Purchase Information

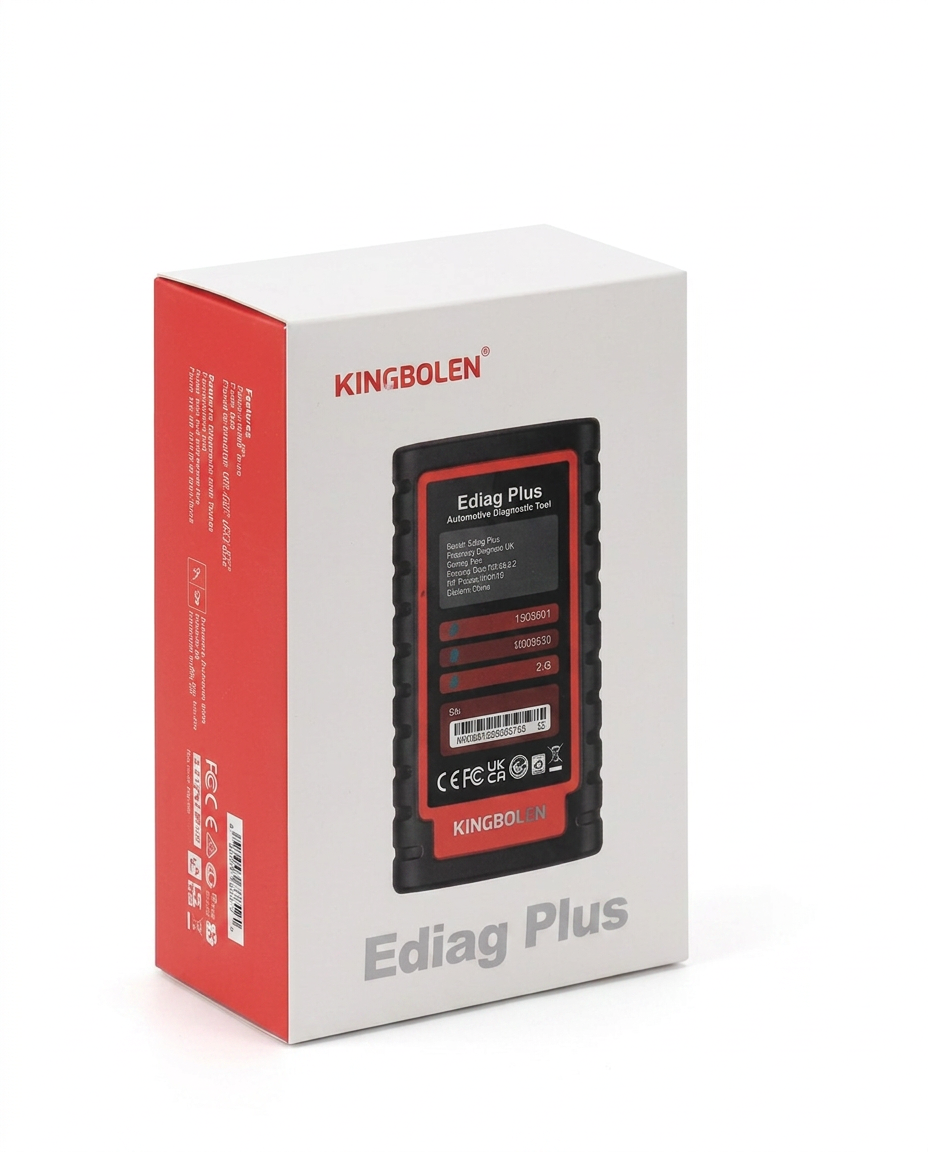

1 × KINGBOLEN Ediag Plus Diagnostic Device
1 × OBD2 Cable
1 × USB Charging Cable
1 × User Manual
1 × Carrying Case
1 × 12-Month Warranty

Fast Delivery · Secure Checkout · Professional Support Available

Specifications

Model: KINGBOLEN Ediag Plus
Display: 5" LCD Color Touchscreen
Operating System: Android
Processor: Quad-core CPU
Memory: 2 GB RAM / 32 GB Storage
Connectivity: Bluetooth / USB
Protocols: OBD-II, CAN, CAN FD, ISO9141, KWP2000, J1850, UDS, DoIP
Voltage Range: 9–18 V DC
Update Method: Online update via app
Functions: ECU Coding, Active Test, Full System Scan, Live Data, DTC Reading/Clearing
Vehicle Coverage: 100+ brands (Europe, America, Asia)
Languages: English, German, French, Spanish, Italian, Portuguese, Russian, and more
Weight: ≈ 450 g
Dimensions: 190 × 90 × 40 mm
Power Supply: Via vehicle OBD port
